Surface preparation is the essential first stage treatment of a steel substrate before the application of any coating, and is generally accepted as being the most important factor affecting the total success of a corrosion protection system.
The performance of a coating is significantly influenced by its ability to adhere properly to the substrate material. Residual millscale on steel surfaces is an unsatisfactory base to apply modern, high performance protective coatings and is therefore removed by abrasive blast cleaning. Other surface contaminants on the rolled steel surface, such as oil and grease are also undesirable and must be removed before the blast cleaning process.
The surface preparation process not only cleans the steel, but also introduces a suitable profile to receive the protective coating.
Initial surface condition
 |
| Manual blast cleaning |
 |
| Automatic blast cleaning |
Structural steel elements in new structures are usually either hot rolled sections or fabricated plate girders. The initial steel surfaces normally comply with rust grades A or B according to BS EN ISO 8501-1[1].
Material that is pitted, i.e. rust grades C or D, should be avoided if possible, since it is difficult to clean all the corrosion products from the pits during surface preparation. Descriptions of rust grades A to D are as follows
A - Steel surface largely covered with adhering mill scale, but little if any rust
B - Steel surface which has begun to rust and from which mill scale has begun to flake
C - Steel surface on which the mill scale has rusted away or from which it can be scraped, but with slight pitting under normal vision
D - Steel surface on which the mill scale has rusted away and on which general pitting is visible under normal vision

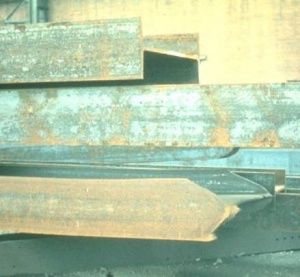

Hot rolled sections with millscale (Grade B)
Methods of preparation and grades of cleanliness
Various methods and grades of cleanliness are presented in BS EN ISO 8501-1[1]. This standard essentially refers to the surface appearance of the steel after hand cleaning, power tool cleaning, abrasive blast cleaning or flame cleaning and gives descriptions with pictorial references of the grades of cleanliness.
Hand and power tool cleaning
Surface cleaning by hand tools such as scrapers and wire brushes is relatively ineffective in removing mill scale or adherent rust. Power tools offer a slight improvement over manual methods and these methods can be approximately 30% to 50% effective but are not usually utilised for new steelwork fabrications. Where it is not possible to clean by abrasive blasting, hand and power tool methods may be the only acceptable alternative methods.
Modern power tooling has been developed not only to achieve a good standard of surface cleanliness and profile but also to provide near total containment of all dust and debris generated. New equipment is now available to use percussive reciprocating needles, rotary abrasive coated flaps and right-angle grinders, all within a vacuum shroud to enable on-site surface preparation to be environmentally acceptable.
The surface preparation by hand and power tools is covered by BS EN ISO 8504-3[2], and the standard grades of cleanliness in accordance with BS EN ISO 8501-1[1] are:
- St. 2: Thorough hand and power tool cleaning
- St. 3: Very thorough hand and power tool cleaning
Hand wire brush
(Image courtesy of Corrodere/MPI)
Rotary wire_brush
(Image courtesy of Corrodere/MPI)
Rotary grinder
(Image courtesy of Corrodere/MPI)
Needle gun
(Image courtesy of Corrodere/MPI)
Abrasive blast cleaning

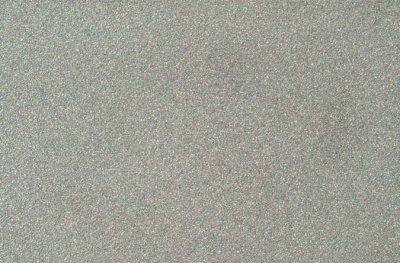

Blast cleaned steel surface to Sa 2½ standard
By far the most significant and important method used for the thorough cleaning of mill-scaled and rusted surfaces is abrasive blast cleaning. This method involves mechanical cleaning by the continuous impact of abrasive particles at high velocities on to the steel surface either in a jet stream of compressed air or by centrifugal impellers. The latter method requires large stationary equipment fitted with radial bladed wheels onto which the abrasive is fed. As the wheels revolve at high speed, the abrasive is thrown onto the steel surface, the force of impact being determined by the size of the wheels and their radial velocity. Modern facilities of this type use several wheels, typically 4 to 8, configured to treat all the surfaces of the steel being cleaned. The abrasives are recycled with separator screens to remove fine particles. This process can be 100% efficient in the removal of mill scale and rust.
The standard grades of cleanliness for abrasive blast cleaning in accordance with BS EN ISO 8501-1[1] are:
- Sa 1 – Light blast cleaning
- Sa 2 – Thorough blast cleaning
- Sa 2½ – Very thorough blast cleaning
- Sa 3 – Blast cleaning to visually clean steel
Specifications for bridge steelwork usually require either Sa 2½ or Sa 3 grades.
The cleaned surfaces should be compared with the appropriate reference photograph in the standard according to the specification.
A very wide range of abrasives is available. These can be non-metallic (metal slags, aluminium oxide, etc) and metallic (steel shot or grit, etc)
The particle size of the abrasive is also an important factor affecting the rate and efficiency of cleaning. In general terms, fine grades are efficient in cleaning relatively new steelwork, whereas coarse grades may be required for heavily corroded surfaces. The removal of rust from pitted steel is more easily effected by fine grades and, depending upon the condition of the steel surface, a mixture of grades may be required initially to break down and remove mill scale and clean in pitted areas.
Manual blast cleaning
(Video courtesy of Corrodere/MPI)
Flame cleaning
This method uses an oxy/gas flame that is passed over the steel surface. The sudden heating causes rust scales to flake off as a result of differential expansion between the scales and the steel surface. All loose rust can then be removed by scraping and wire brushing followed by dust removal. Flame cleaning is not an economic method and may damage coatings on the reverse side of the surface being treated. Also the technique is not very effective in removing all rust from steel, so it is rarely used.
Acid pickling
This process involves immersing the steel in a bath of suitable inhibited acids that dissolve or remove the millscale and rust but do not appreciably attack the exposed steel surface. The cleaning can be 100% effective. Acid picking is normally only used for structural steel intended for hot-dip galvanizing.
Removal of soluble iron corrosion products
Depending upon the condition of the steelwork prior to blast cleaning, there may be surface contaminants present other than mill scale and rust. Initial steel surface conditions of Grades A to C are unlikely to be affected, however Grade D condition (steelwork that is pitted) could contain contaminants within the pits that may not be removed by the dry blast cleaning process. The testing for soluble iron corrosion products is not usually required for new steelwork but is sometimes carried out on steelwork which has been stored in an external environment for long periods of time and on existing structures undergoing maintenance treatments.

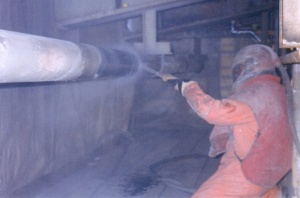

Wet abrasive blast cleaning
The introduction of water into an abrasive blast stream contributes to the reduction of the dust hazard, particularly when removing old lead based paints and water-soluble contaminants. Several methods of using water with abrasives have been developed. Conventional wet abrasive blast cleaning uses the same pressures as for conventional dry blasting and similar equipment. The water is usually introduced immediately behind the nozzle so that it is atomised and accelerated through the nozzle orifice along with the air and abrasive. Water can also be introduced in controlled amounts at the base of the blast pot and is then mixed with the air and abrasive as it passes along the blast hose.
A low pressure system exists in which water is injected into the air stream which then shrouds the air/abrasive mixture and prevents dust escaping during the blasting operation. The air/water pressure at the nozzle is relatively low; up to 7.0kgF/cm2 (100lbF/in2). Because of the low water to air ratio of the system, fine particulates of abrasive can remain on the steel surface and need to be removed by water washing. This method can produce a high visual standard of cleaning and is effective in removing a high proportion of soluble salts.
Some wet abrasive processes use inhibitors in the water to prevent rusting of the cleaned surface. It is important to establish whether any remaining traces of such inhibitors will be compatible with the paint coating to be applied subsequently. Generally, where inhibitors are not used, any surface rusting after wet abrasive blasting is usually removed by final light dry blast cleaning.

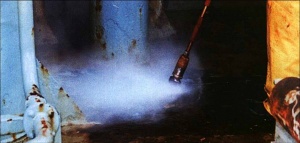

Ultra-high pressure water jetting
Ultra-high pressure water jetting over 1,700 bar (25,000psi) is gaining in popularity, partly because of its ability to remove high percentages of soluble salts from the steel surface. It has the advantage of not generating spent abrasive and not incurring the cost of abrasive disposal. Also, at the higher pressures, lower volumes of water are used, and this makes disposal costs lower than with traditional water blasting methods. Ultra-high pressure water jetting leaves a warm surface from which traces of residual water quickly dry, but does not generate sufficient heat to cause thermal stress in the steel surface.
The removal of a high proportion of soluble salts from the steel surface is seen to be the major advantage of ultra-high pressure water jetting. Rust and coatings are sheared and lifted from the surface relatively easily compared with other blasting methods. Soluble salts are removed more effectively because the steel profile generally remains unchanged.
Injecting small amounts of abrasive into the water stream can induce a rougher surface profile but can also increase operating costs. The surface preparation by Ultra-high pressure water jetting is covered by BS EN ISO 8501-4[3].
Ultra-high pressure water jetting is an extremely versatile and effective method of removing paint and metal coatings, soluble salts and other contaminants from steel surfaces. It is environmentally friendly and, although at present it is costly compared with traditional blast cleaning methods, it is considered to be an emerging technology which will, in the near future, rival and possibly replace traditional open abrasive blast cleaning methods.
UHP water jetting
(Video courtesy of Corrodere/MPI)
Surface profile and amplitude

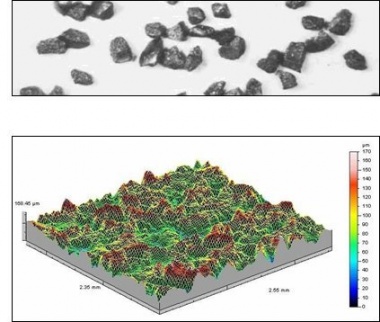

The type and size of the abrasive used in blast cleaning have a significant effect on the profile and amplitude produced. In addition to the degree of cleanliness, surface preparation specifications should also consider ‘roughness’ relative to the coating to be applied. High build paint coatings and thermally sprayed metal coatings need a coarse angular surface profile to provide a mechanical key. This is achieved by using grit abrasives. Shot abrasives are used for thin film paint coatings such as pre-fabrication primers.

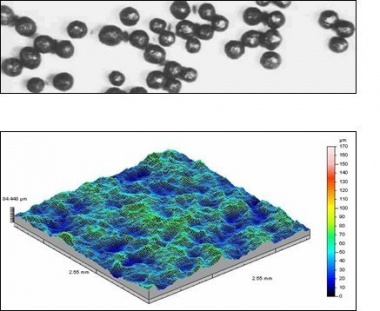

The difference between shot and grit abrasives and the corresponding surface profiles produced is illustrated below in the three-dimensional diagrams obtained from noncontact surface characterisation equipment.

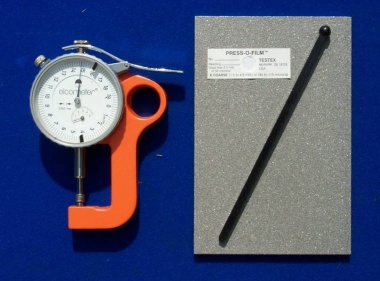

The surface treatment specification should describe the surface roughness required, usually as an indication of the average amplitude achieved by the blast cleaning process. Several methods have been developed to measure or assess the distance between the peaks and troughs of blast cleaned surfaces. These have included comparator panels, special dial gauges, replica tapes and traversing stylus equipment. Usually, comparators or replica tapes are used, and the relevant standards are BS EN ISO 8503-1[4] and BS EN ISO 8503-5[5] respectively.

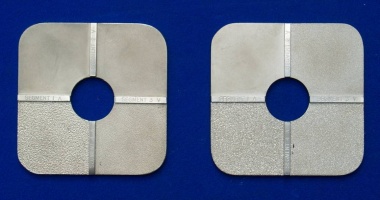

Surface profile comparators
